Three Wheelers are largely used as commercial vehicles, used to carry passengers and goods. They have bi-fuel engine, working either on CNG or LPG and petrol for limphome. They have TMC brake system and anti-dive front suspension. They are provided with remote location gas filling and oil pumps drive extracted from clutch shaft. It is safe on road and low on maintenance and highly economical. They are also cleaner for the environment and convenient. There is an efficient battery charging also provided along with safety measures in case of brake failure. They have got good after sales service. Because of the bifuel mode, one can run the vehicle in a number of ways, thereby making maintenance convenient. Bajaj three wheelers, Piaggio van are some of the brands who make vehicles in this category.

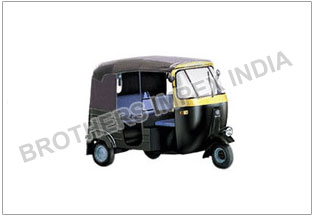

Bajaj Auto rickshaw Bajaj Auto rickshaw RE 2 Stroke Features : Antidive front suspension TMC brake system Stylish tell-tale indicators on the dash board Powerful 100 watts magneto Petrol mode also provided Advantage : Reduce the nose diving tendency during breaking and provides more driving comfort on rough roads Provide safety incase of the brake failed Easy indication of petrol/gas mode, high beam, neutral gear & battery charging. Provides efficient battery charging Limp home facility Benefits : Comfort Safety for driving Convenience Low maintenance Enables the vehicle to reach the gas filling pump in the event of vehicle running out of gas. Rating :

Technical Specifications: Engine Type Two stroke, forced air cooled, SI engine Bore x stroke, mm 57 / 57 No. of cylinders One Displacement 145.45 cc Bore X Stroke 62 mm X 66 mm Compression ratio 10.0 ± 0.7 : 1 Max. Power, kW @ rpm 5.24 kW @ 5000 rpm Max. Torque, Nm @ rpm 12.17 N.m a@ 3500 Air Cleaner Type Oil Bath Type Clutch Type Wet multidisc type Transmission Transmission 4 Forward + 1 Reverse Chassis Type Monocoque Suspension Type Front – Swing arm with Antidive Link, Rear – Swing Arm Spring Front - Helical coil compression spring, Rear -Helical coil compression spring Shock Absorbers Front - Hydraulic, double acting, Rear – Hydraulic, double acting. Brakes Service Brake (Brief description) Single control, right foot operated hydraulic brakes with TMC Wheel Rim Size Front- 3.00 x 8, Rear - 3.00 x 8 Tyre size Front & Rear Front & Rear - 4.00-8, 4PR Electrical System Voltage 12V, DC Battary Rating 12V, 32Ah Fuel Tank System Voltage, V 12 V, AC + DC Battery rating, Ah 12 V, 9 A.h Wiper Motor Electrical Wiping system (Brief description) Single speed electrical wiper motor with wiper arm and blade Fuel tank Capacity Full – 8.0 ltrs, Reserve – 1.4 ltrs. Dimensions Wheel base, mm 2000 Overall width, mm 1300 Overall length, mm 2625 Overall height, mm 1710 Rear track, mm 1150 Min. ground clearance, mm 180 Weights Maximum GVW, kg 610 Kerb Weight, kg 284 Gradeability 16 % (9.1°) max.
