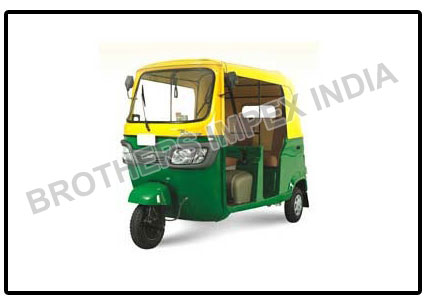

TVS KING THREE WHEELER
This new TVS King includes new 200cc, seven port engine which offers about 30 kmpl with 18.4 Nm torque at 2500rpm.

Engine

Type 4 stroke single cylinder, forced air cooled, spark ignition (SI) Engine
Displacement 199.26 cc
Maximum power 5.5 + 0.3 kw / (7.37 bhp)  5000 + 300 rpm
Maximum torque 12.9 + 0.6 Nm 3250 + 300 rpm
Bore X Stroke 62 mm X 66 mm
Compression ratio 9.6 + 0.3:1
Starting Electric & Hand Start
Ignition High Energy Inductive Ignition
Fuel feed system Side draft carburetor-intake and exhaust controlled by valve mechanism
Lubrication Positive displacement type oil pump mounted on an oil stump






Transmission

Transmission 4 forward and 1 reverse speed, constant mesh, fork & cam type shift mechanism






Chassis

Type Semi Monocoque






Suspension

Front & Rear Trailing arm type, constant rate coil spring with co-axial hydraulic damper






Brakes

Front & Rear Drum, Hydraulic






Wheels & Tyres

Rim size- Front & rear Drum, Hydraulic
Tyre size- Front & rear 4.00-8,6 PR
